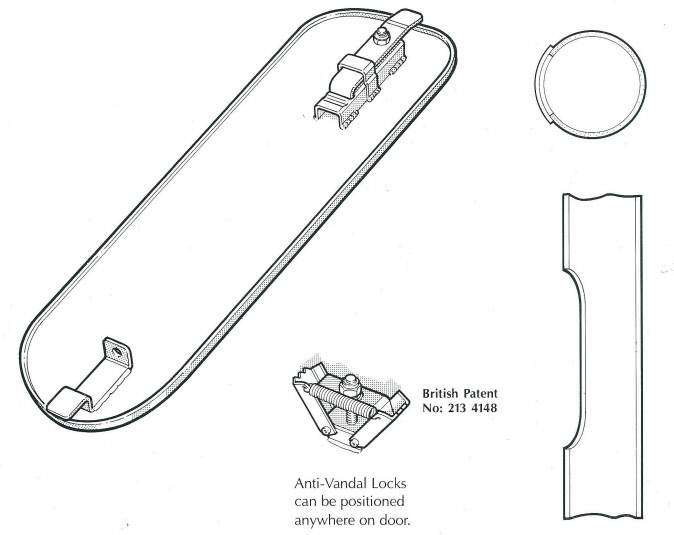

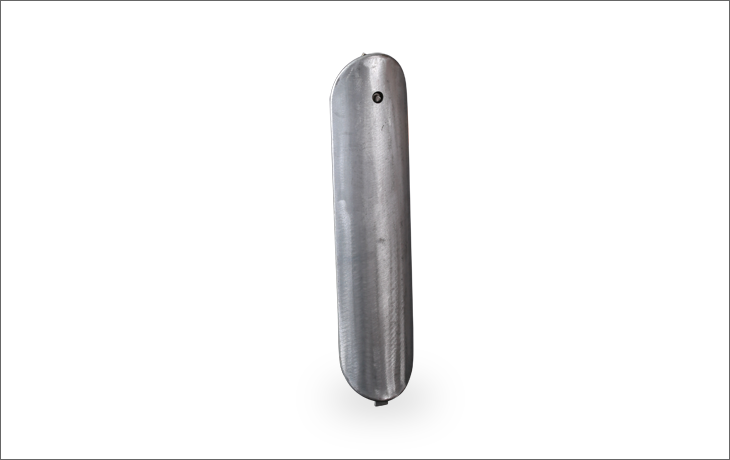

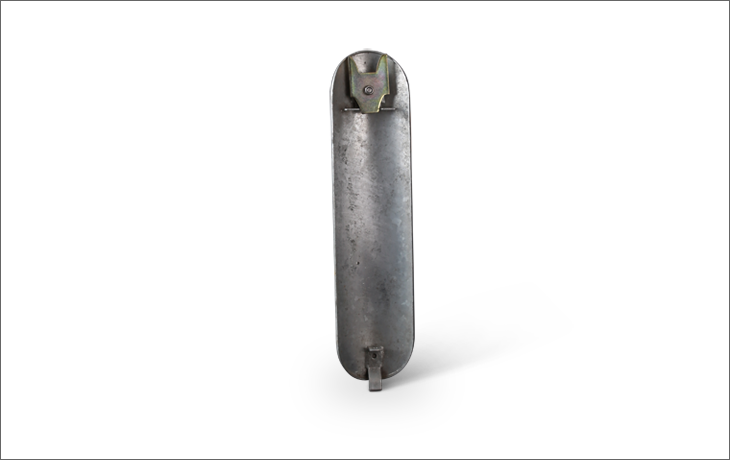

Round Ended Doors

Half Round Doors with Radius Ends For More Modern Sign Post / Lighting Columns.



  • Doors Manufactured from 2mm Mild Steel
  • Standard Latchlock, Optional Anti-Vandal Lock
  • Galvanised to BS 729.
Round Ended Doors

Part Number
Column Dia
Door Height
Door Width
Aperture Height
Aperture Width

CMD 204/1
114
525
115
500
90

CMD 204/2
140
525
125
500
100

CMD 204/3
140
625
140
600
100

CMD 204/4
168
625
150
500
120

CMD 204/5
168
625
150
600
115

CMD 204/6
193
625
155
600
120







Half Round Doors with Radius Ends

Half Round Doors With Radius Ends For Modern Sign Post / Lighting Columns

Half Round Doors with Radius Ends

Half Round Doors With Radius Ends For Modern Sign Post / Lighting Columns


!
